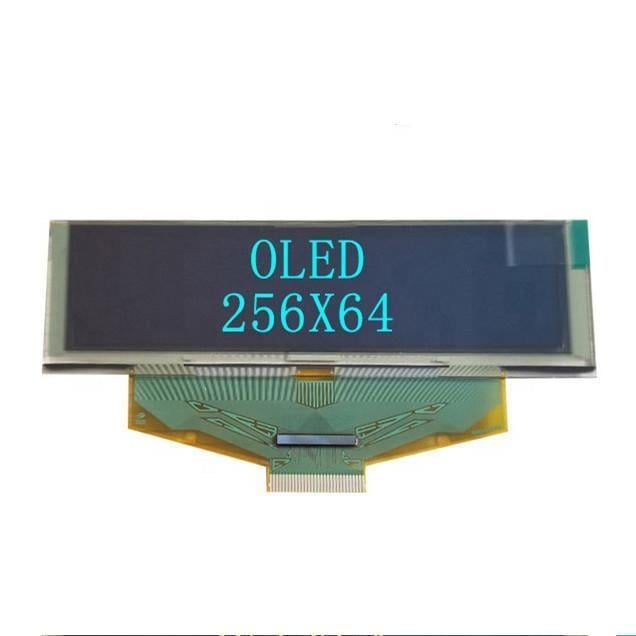

OLED LCD Ekran 256x64 3.2'' (2208280003)

OLED LCD Ekran 256x64 3.2"

1. Drive Mode: Passive Matrix

2. Pixel: 256x64

3. Display Area: 76.78×19.18

4. Glass Size: 88.00×27.80×2.0

5. Pin Number: 34

6. Color: white light 16GrayScales

7. Supply Voltage: 2.4~3.5V

8. Frame: 100 Frames/Sec

9. Working Temperature: -40~85℃

10. Storage Temperature: -40~85℃

11. Driver IC: SSD1322

12. Luminance: 70(Typ) cd/m2

13. Driving Voltage: 12V

14. Hardware Interface: Parallel / 3/4-wire SPI/I2C

15. Module Structure: TCP
