Name: Waveshare Jetson Orin NX AI Kiti 16GB - Kit A
Brand: Waveshare
SKU: 2504021004
Price: 88866.00 TRY
Availability: OutOfStock

Sliders

Desktop Image

Title

Subtitle

Button Link

Button Text

Show Overlay Background

Mobile Image

If you want the picture to be clicked, enter the link

Image Link

Secondary Button Link

Secondary Button Text

Button Background Color

Is External Links

Button Color

Button Hover Background Color

Texts Color

Button Hover Text Color

Is Video?

Please turn on silent start for the video to play automatically

Video

Is Mobile Video

Mobile Video

Title H Tag

Top Title

Top Title Color

Top Title Font Size Desktop

Top Title Font Size Mobile

Top Title Font Weight

Footer Links

Links

No Follow?

Image List

Category Images


Sub Text

Text Color

Button Text Color

Top Title Font Size

Button Border Radius

Image Aspect Ratio

Image Aspect Ratio Mobile

Is Defult Aspect Ratio

Button Position

Button Position Mobile

Is Button Outside

Image List Flex

Category Images Flex

Is No Follow?

External Link Target Blank

Layout Images

Link

Is Image Contain

Link Text Color

Link Background Color

Button Font Weight

S.S.S

Question

Answer

Is Rich Text Question

Brand Image List

Image Border Radius

Text

Text Font Weight

Text Font Size

External Link Target

Aspect Ratio

Aspect Ratio Mobile

Is Image & Video Cover

Video Height

Text Position

Top Position

Remove Top Space

Button Show?

Button Background Color

Button Text Color

Button On Image

Cookie Info

Cookie Content

Cookie Button Text

Cookie Bar Show

Accept Text Left?

Show Close Button

Cookie Bar Position

Comments

Comment

Star

WritingBy & Date

Content

LookBook - Image

Sub Title

Hide Button

Is Image Cover

Title Color

Sub Title Color

Image List Grid

Category Images Grid

Title & Sub Title Color

İmage & Button Link

Content Position

ReadMoreButtonPosition

LogoPosition

SliderAutoSecond

AnnouncementText

Announcement

Color

Background Color

Mobile Font Size

Font Weight

Text UpperCase

BrandSliderItem

ProductDetailImageAspectRatio

Horizontal

Vertical

ColumnGrid

DescriptionPosition

AddBasketButtonPosition

Testimonial

Quote

Writer

Rating

Fill Stars?

FeaturesGrid

Features

New Tab?

Align

BorderStyle

Image Type

ButtonPosition

Collection List

CollectionList

External Link Target Blank?

BlogImageAspectRatio

ButtonLinks

Button Links

Border Color

Button Width

Button Width Mobile

Hover Background Color

Hover Text Color

Zoom Enable

MarqueeImageItem

Marquee Image Item

ARROWS

Video Link

Link Url

BlogLinkText

Blog & Text

Blog

Employee

Full Name

HeaderHelperBar

Show Bar

Bar Background Color

Bar Text & Icon Color

Show Mobile?

Link List

Facebook Link

Instagram Link

Twitter Link

Pinterest Link

Youtube Link

LinkedIn Link

Tiktok Link

Twitch Link

Discord Link

Is Centered Links

It works if there are no social media icons

Is Right Links

CustomModalAttr

Custom Modal Show

Icon

Is HTML?

Special Attr. (Only Image)

HTag

HelperBarIcons

Icon Width

Category Image Text List

Category Image Text

Border Radius

Header Mega Menu

Image Reverse

Image Cover

Bottom Top Padding

Min Height

Sub links & Title

Sub Links & Title

Tag - Image

TagImage

Image Width

Image Height

Mobile Image Width

Mobile Image Height

Waveshare Jetson Orin NX AI Kiti 16GB - Kit A Modeli ve daha fazlası uygun fiyatlarla Robocombo'da. Projenizi tamamlayacak bütün ihtiyaçlarınız için hemen tıklayın.

Waveshare

<META name=viewport content="width=device-width, initial-scale=1.0">
<STYLE type=text/css>body {
            font-family: Arial, sans-serif;
            line-height: 1.6;
        }
        .product-description {
            border: 1px solid #ddd;
            padding: 20px;
            margin: 20px 0;
            background-color: #f9f9f9;
        }
        .image-container {
            display: flex;
            justify-content: center;
            gap: 10px;
        }
        .image-item {
            text-align: center;
        }
        .image-item img {
            width: 300px;
            height: auto;
            border: 1px solid #ccc;
            padding: 5px;
        }
        .image-item p {
            margin-top: 5px;
            font-size: 14px;
            color: #555;
        }
        .table-container {
            margin-top: 20px;
            overflow-x: auto;
        }
        table {
            width: 100%;
            border-collapse: collapse;
            text-align: left;
        }
        th, td {
            border: 1px solid #ddd;
            padding: 10px;
        }
        th {
            background-color: #f2f2f2;
            font-weight: bold;
        }
        td {
            text-align: center;
        }
        .info-box {
            margin-top: 20px;
            padding: 15px;
            background-color: #333;
            color: white;
            font-size: 16px;
            text-align: center;
            border-radius: 5px;
        }
        .centered-image {
            display: block;
            margin: 0 auto;
            border: 1px solid #ccc;
            padding: 5px;
        }
</STYLE>

<DIV class=product-description>
<H2><SPAN style="FONT-SIZE: 22px"><STRONG>Waveshare Jetson Orin NX AI Kiti 16GB - Kit A</STRONG></SPAN></H2><STRONG></STRONG>
<P><STRONG><SPAN style="FONT-SIZE: 14px">SKU:</SPAN></STRONG> 24289</P>
<P><STRONG>Marka:</STRONG> Waveshare</P>
<P><STRONG>Model:</STRONG>&nbsp;Waveshare Jetson Orin NX AI&nbsp;Kiti 16GB&nbsp;- Kit A</P>
<P><STRONG>Özellikler:</STRONG></P>
<UL>
<LI>8 çekirdekli Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3</LI>
<LI>32 Tensör Çekirdeğine sahip 1024 çekirdekli N-VIDIA Ampere mimarili GPU</LI>
<LI>16GB 128-bit LPDDR5, 102.4GB/s</LI>
<LI>Harici NVMe'yi destekler</LI></UL>
<P><STRONG>Açıklama:</STRONG> <SPAN style="COLOR: green">Yapay zeka ve derin öğrenme projelerinizde yüksek performans ve esneklik arıyorsanız&nbsp;Jetson Orin NX 16GB tam size göre.&nbsp;Bu geliştirme kiti, Waveshare’in SuperAI taşıyıcı kartı ile birlikte gelir ve yüksek performans, kompakt tasarım ve genişletilebilir bağlantı arayüzleri ile gömülü AI sistemleri için eksiksiz bir çözüm sunar. Otonom makineler, akıllı kameralar, endüstriyel denetim sistemleri ve robotik gibi alanlarda güçlü bir altyapı sağlar.</SPAN></P>
<P><EM>Jetson Orin NX AI&nbsp;Kartı - Kit A ile kablosuz haberleşme projelerinizde güçlü ve istikrarlı bir duruş sergileyin!</EM></P>
<DIV class=image-container>
<DIV class=image-item><img alt="Jetson Nano Geliştirme Kartı (Üstten)" src="https://cdn1.xmlbankasi.com/p1/oifrrxlmorad/image/data/resimler/alt-aciklama-resimleri-10880.jpg">

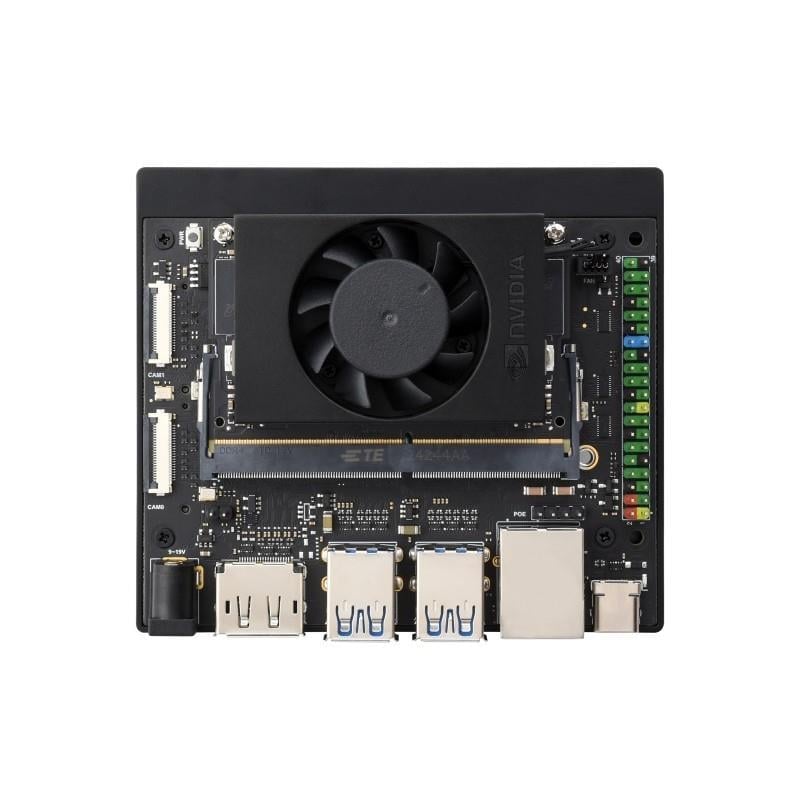

<P>Jetson Orin NX AI Kartı&nbsp;(Üstten)</P></DIV>
<DIV class=image-item><img alt="Jetson Nano Geliştirme Kartı (Alttan)" src="https://cdn1.xmlbankasi.com/p1/oifrrxlmorad/image/data/resimler/alt-aciklama-resimleri-10881.jpg">

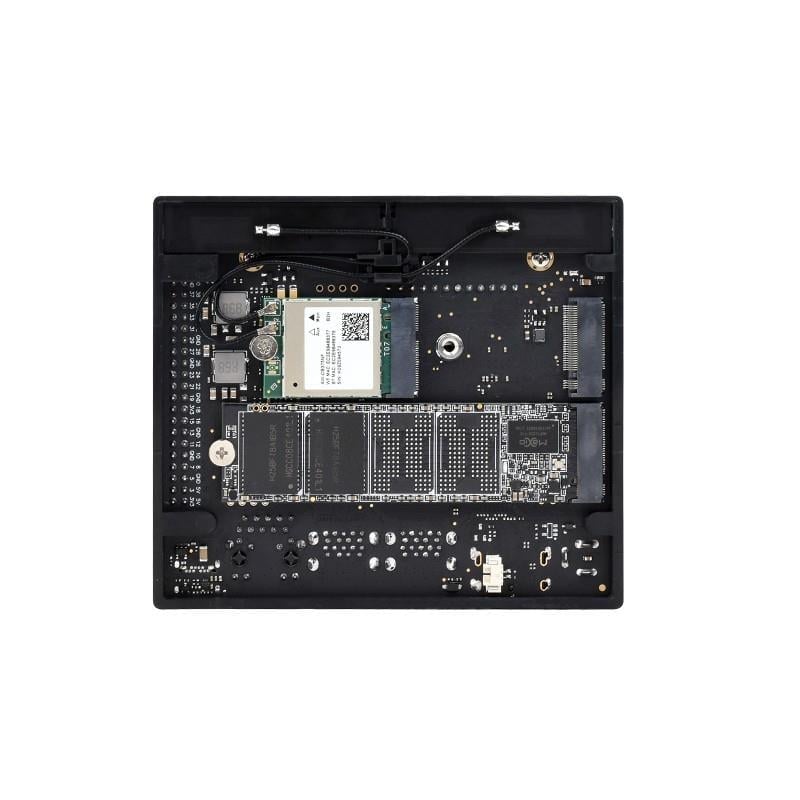

<P>Jetson Orin NX AI Kartı&nbsp;(Alttan)</P></DIV></DIV>
<DIV class=table-container>

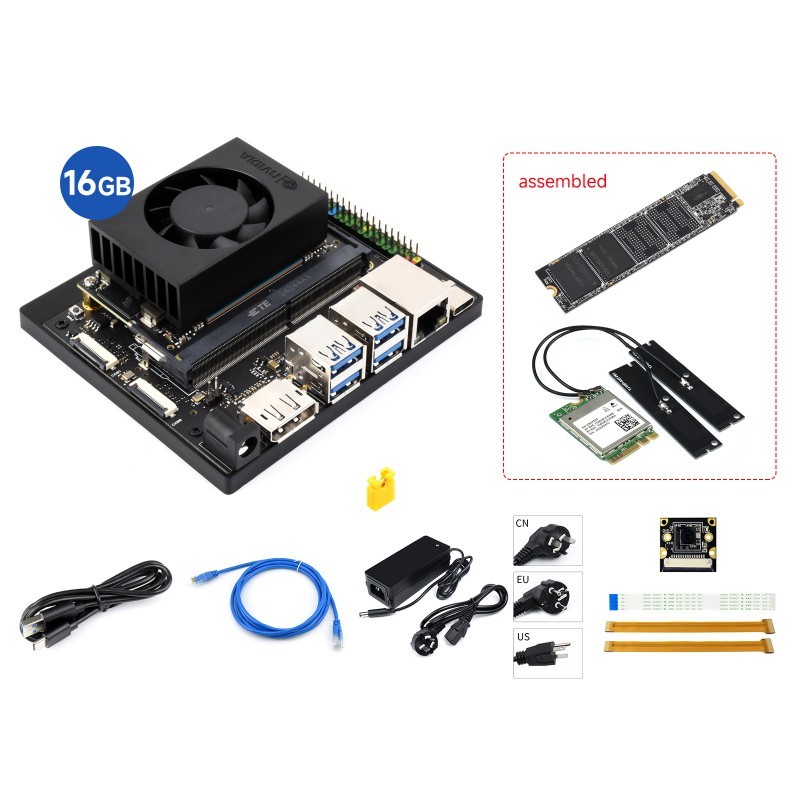

<H3>Kit İçerikleri</H3>
<TABLE>
<THEAD>
<TR>
<TH>Kit</TH>
<TH>A</TH>
<TH>B</TH></TR></THEAD>
<TBODY>
<TR>
<TD>JETSON-ORIN-NX-AI-DEV-KIT</TD>
<TD>√</TD>
<TD>√</TD></TR>
<TR>
<TD>
<P>IMX219-77 Kamera</P></TD>
<TD>√</TD>
<TD>√</TD></TR>
<TR>
<TD>
<P>13,3 inç HDMI LCD (H) (kılıflı) V2 ((USB kablosu, DP - HDMI kablosu, Güç Kaynağı)</P></TD>
<TD>&nbsp;</TD>
<TD>√</TD></TR></TBODY></TABLE></DIV>
<DIV class=info-box>
<P><STRONG>Özel Teklif:</STRONG> Bu ürünü şimdi satın alın ve ücretsiz kargo avantajından yararlanın!</P></DIV>
<DIV class=table-container>
<H3>Modül Karşılaştırması</H3>
<TABLE>
<TBODY>
<TR>
<TH>VERSİYON</TH>
<TD><STRONG>8GB SUPER***</STRONG></TD>
<TD><STRONG>16GB SUPER***</STRONG></TD></TR>
<TR>
<TH>AI PERFORMANSI</TH>
<TD><STRONG>117 TOPS***</STRONG></TD>
<TD><STRONG>157 SUPER***</STRONG></TD></TR>
<TR>
<TH>GPU</TH>
<TD colSpan=2>32 Tensor Çekirdeğe sahip 1024 çekirdekli N-VIDIA Ampere mimarisi GPU</TD></TR>
<TR>
<TH>GPU FREKANSI</TH>
<TD colSpan=2>1173MHz (Max.)</TD></TR>
<TR>
<TH>CPU</TH>
<TD><STRONG>6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3</STRONG></TD>
<TD><STRONG>8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3</STRONG></TD></TR>
<TR>
<TH>CPU FREKANSI</TH>
<TD colSpan=2>2GHz (Max.)</TD></TR>
<TR>
<TH>DLA (DERİN ÖĞRENME HIZLANDIRICI)</TH>
<TD><STRONG>1x N-VDLA v2</STRONG></TD>
<TD><STRONG>2x N-VDLA v2</STRONG></TD></TR>
<TR>
<TH>DLA FREKANSI</TH>
<TD colSpan=2>1230MHz (Max.)</TD></TR>
<TR>
<TH>GÖRÜŞ (VISION) HIZLANDIRICI</TH>
<TD colSpan=2>1x PVA v2</TD></TR>
<TR>
<TH>BELLEK</TH>
<TD><STRONG>8GB 128-bit LPDDR5, 102.4GB/s</STRONG></TD>
<TD><STRONG>16GB 128-bit LPDDR5, 102.4GB/s</STRONG></TD></TR>
<TR>
<TH>DEPOLAMA</TH></TR>
<TR>
<TH>GÜÇ</TH>
<TD colSpan=2>10W | 15W | 25W | 40W</TD></TR>
<TR>
<TH>PCIe</TH>
<TD colSpan=2>1 x4 + 3 x1 (PCIe Gen4, Root Port, &amp; Endpoint)</TD></TR>
<TR>
<TH>USB</TH>
<TD colSpan=2>3x USB 3.2 2.0 (10 Gbps)| 3x USB 2.0</TD></TR>
<TR>
<TH>CSI KAMERA</TH>
<TD colSpan=2>
<P>4 kameraya kadar (sanal kanallar üzerinden 8**)</P>
<P>8 MIPI CSI-2 hattı</P>
<P>D-PHY 1.2 (20 Gbps'e kadar)</P></TD></TR>
<TR>
<TH>VİDEO KODLAMA</TH>
<TD colSpan=2>1x 4K60 (H.265) | 3x 4K30 (H.265)<BR>6x 1080p60 (H.265) | 12x 1080p30 (H.265)</TD></TR>
<TR>
<TH>VIDEO ÇÖZÜMLEME</TH>
<TD colSpan=2>1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265)<BR>9x 1080p60 (H.265) | 18x 1080p30 (H.265)</TD></TR>
<TR>
<TH>EKRAN</TH>
<TD colSpan=2>1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1</TD></TR>
<TR>
<TH>DİĞER ARAYÜZLER</TH>
<TD colSpan=2>3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC &amp; DSPK, PWM, GPIO</TD></TR>
<TR>
<TH>BAĞLANTI</TH>
<TD colSpan=2>1x GbE</TD></TR>
<TR>
<TH>BOYUT</TH>
<TD colSpan=2>69.6 mm x 45 mm<BR>260-pin SO-DIMM connector</TD></TR></TBODY></TABLE></DIV>
<STYLE type=text/css>.centered-image {
        display: block;
        margin: 0 auto;
        border: 1px solid #ccc;
        padding: 5px;
    }
</STYLE>

<DIV class=image-item>*USB 3.2, MGBE ve PCIe, UPHY Hatlarını paylaşır. Desteklenen UPHY yapılandırmaları için Ürün Tasarım Kılavuzuna bakın.</DIV>
<DIV class=image-item>**Jetson Orin NX için Sanal Kanallar değişikliğe tabidir</DIV>
<DIV class=image-item>***Orin NX Modülü ve Waveshare kiti: SUPER imajına yükseltmeyi destekler, wiki'de SUPER yükseltme eğitimi sağlar (jetpack 6.2, SUPER sürümünün yükseltilmesini destekleyebilir);</DIV>
<DIV class=image-item>&nbsp;</DIV>
<DIV class=image-item><img class=centered-image alt="Jetson Orin Nano Geliştirme Kartı Boyutları" src="https://cdn1.xmlbankasi.com/p1/oifrrxlmorad/image/data/resimler/alt-aciklama-resimleri-10880.jpg"></DIV>
<DIV class=info-box>
<P><STRONG>Özel Teklif:</STRONG> Bu ürünü şimdi satın alın ve ücretsiz kargo avantajından yararlanın!</P></DIV>
<DIV class=richTitle>&nbsp;</DIV>
<DIV class=richTitle style="TEXT-ALIGN: center">
<P><STRONG style="FONT-SIZE: 22px; COLOR: rgb(192,57,43)">Jetson Orin NX AI Kiti&nbsp;Özellikler</STRONG></P></DIV>
<STYLE type=text/css>.centered-image {
        display: block;
        margin: 0 auto;
        border: 1px solid #ccc;
        padding: 5px;
    }
</STYLE>

<DIV class=image-item><img class=centered-image alt="Jetson Orin Nano Geliştirme Kartı Özellikler" src="https://cdn1.xmlbankasi.com/p1/oifrrxlmorad/image/data/resimler/alt-aciklama-resimleri-10729.png"></DIV>
<UL>
<LI style="TEXT-ALIGN: left"><STRONG>1) Core module socket</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>2) TF card slot</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>3) M.2 Key E connector</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>4) 1.25mm Fan header</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>5) PoE pins</STRONG>: PoE module is not included</LI>
<LI style="TEXT-ALIGN: left"><STRONG>6) 40PIN GPIO header</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>7) 2.54mm Fan header</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>8) Micro USB port:</STRONG>&nbsp;for 5V power input or for USB data transmission</LI>
<LI style="TEXT-ALIGN: left"><STRONG>9) Gigabit Ethernet port:</STRONG>&nbsp;10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected</LI>
<LI style="TEXT-ALIGN: left"><STRONG>10) 4x USB 3.0 port</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>11) HDMI output port</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>12) DisplayPort connector</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>13) DC jack:</STRONG>&nbsp;for 5V power input</LI>
<LI style="TEXT-ALIGN: left"><STRONG>14) 2x MIPI CSI camera connector</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>15) Multi-function 12PIN header</STRONG></LI>
<LI style="TEXT-ALIGN: left"><STRONG>16) PWR button:</STRONG>&nbsp;Power ON/OFF control (same function as the PWR BTN pin)</LI></UL>
<P style="TEXT-ALIGN: left">&nbsp;</P>
<P style="TEXT-ALIGN: center"><SPAN style="COLOR: #444444"><STRONG><SPAN style="FONT-SIZE: 22px">JETSON ORİN NX AI KİTİ - KİT A</SPAN></STRONG></SPAN></P>
<P style="TEXT-ALIGN: center"><SPAN style="FONT-SIZE: 22px">Kit İçeriği Görseli</SPAN></P>
<P>&nbsp;</P>
<DIV class=richTitle style="TEXT-ALIGN: center"><SPAN style="FONT-SIZE: 22px"><SPAN style="COLOR: #c0392b"><STRONG></STRONG></SPAN></SPAN></DIV>
<STYLE type=text/css>.centered-image {
        display: block;
        margin: 0 auto;
        border: 1px solid #ccc;
        padding: 5px;
    }
</STYLE>

<DIV class=image-item><img class=centered-image alt="Jetson Orin Nano Geliştirme Kiti - Kit A" src="https://cdn1.xmlbankasi.com/p1/oifrrxlmorad/image/data/resimler/alt-aciklama-resimleri-10884.jpg"></DIV></DIV><STRONG></STRONG>

Waveshare Jetson Orin NX AI Kiti 16GB - Kit A

Konumunuza özel içerikleri görmek ve online alışveriş yapmak için başka bir ülkeyi veya bölgeyi seçin.

Robocombo

AC8265 Jetson Nano için Kablosuz NIC, WiFi / Bluetooth

Çok Satanlar

#000000

WAVESHARE

Waveshare Jetson Orin NX AI Kiti 16GB - Kit A

Çok Satanlar

Robocombo

AC8265 Jetson Nano için Kablosuz NIC, WiFi / Bluetooth
